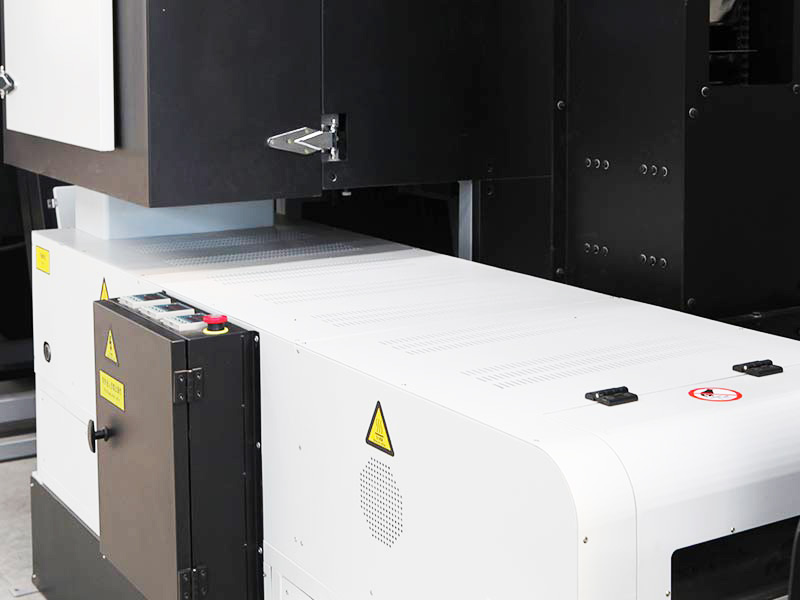

5E-APS Otomatik Numune Hazırlama Sistemi, termik santraller, kömür madenleri, kimya endüstrisi, metalurji, inşaat malzemeleri, coğrafya, çevre koruma, bilimsel araştırma vb. alanlarda kömür numunesi hazırlamaya uygulanan, gözetimsiz çalışma ile belirtilen kömür numunelerinin otomatik olarak üretilmesi için tasarlanmıştır.
| Model | 5E-APS9230 Automatic Sample Preparation System |
| Conforms to Method | GB/T 19494.2, ASTM D2013, ISO 13909-4, ISO 13909-6 |
| Mechanical Feed Weight | 20~100kg |
| Mechanical Feed Size | ≤13mm |
| Manual Feed Weight | 20~100kg |
| Manual Feed Size | ≤50mm |
| Total Moisture Adaptability | ≤20% |
| Machine Power | 60Kw |
| Sample Preparation Efficiency | ≤15min/per sample |
| Primary Crushing Feed Size | ≤100mm |
| Primary Crushing Discharge Size | ≤6mm |
| Primary Crushing Reduction Ratio | Adjust Automatically |
| Secondary Crushing Feed Size | ≤6mm |
| Secondary Crushing Discharge Size | ≤3mm |
| Secondary Crushing Reduction Ratio | Adjust Automatically |
| Grinding System Feed Size | ≤3mm |
| Grinding System Discharge Size | ≤0.2mm |
| Reduction Before Grinding | 1/2 |
| Reduction After Grinding | 1/2 |
| Dimensions(L×W×H) | 6.40m×2.80m×3.14m |
| Minimum Dimensions of Sample Preparation Room(L×W×H) | 9.00m×4.50m×4.00m |
